Abstraction Levels¶

MQT Bench uses the structure proposed by the OpenQASM 3.0 specification [2] and offers benchmarks on four different abstraction levels:

Algorithmic Level
Target-independent Level
Target-dependent Native Gates Level
Target-dependent Mapped Level

An example is given in the following:

1. Algorithmic Level¶

Variational Quantum Algorithms (VQAs) are an emerging class of quantum algorithms with a wide range of applications. A respective circuit is shown above, it represents an example of an ansatz function frequently used for Variational Quantum Eigensolvers (VQEs), a subclass of VQAs. On this abstraction level, the circuit is parameterized by the angles \(\theta_i\) of the six single-qubit gates.

2. Target-independent Level¶

Illustration of the target-independent level

VQAs are hybrid quantum-classical algorithms, where the parameters of the quantum ansatz are iteratively updated by a classical optimizer analogous to conventional gradient-based optimization. Consider again the circuit from the previous figure. Assuming these parameters have been determined, e.g., \(\theta_i\) = −π for i = 0, …, 5, they are now propagated and the resulting quantum circuit is shown above.

3. Target-dependent Native Gates Level¶

Illustration of the target-dependent native gates level

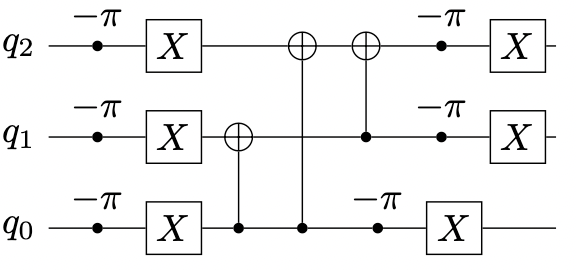

Different quantum computer realizations support different native gate-sets. In our example, we consider the ibmq_manila device as the target device which natively supports I, X, √X, Rz and CX gates. Consequently, the Ry gates in the previous figure have to be converted using only these native gates. In this case, they are substituted by a sequence of X and Rz gates (denoted as • with a phase of −π).

4. Target-dependent Mapped Level¶

Illustration of the ``ibmq_manila`` device

The architecture of the ibmq_manila device is shown above on the right and it defines between which qubits a two-qubit operation may be performed. Since the circuit shown in the previous figure contains CX gates operating between all combination of qubits, there is no mapping directly matching the target architecture’s layout. As a consequence, a non-trivial mapping followed by a round of optimization leads to the resulting circuit shown below.

Illustration of the target-dependent mapped level

This is also the reason for the different sequence of CX gates compared to the previous example.

This circuit is now executable on the ibmq_manila device, since all hardware induced requirements are fulfilled.
